CPLD復雜可編程邏輯器件LC4256ZC-75MN132I
發(fā)布于：2023-11-07 17:26:59
品牌名稱：Lattice
重要參數(shù)：
型號： ispMACH? 4000Z系列
I/O: 96pins
電源電壓：1.8V

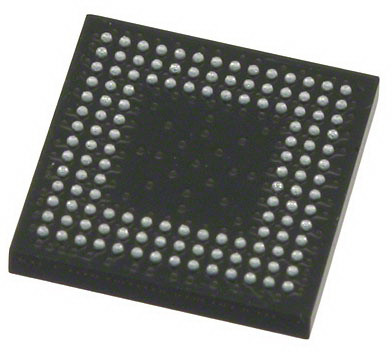

封裝：CSBGA-132pin
Product Technical Specifications
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| Automotive | No |
| PPAP | No |
| Family Name | ispMACH? 4000Z |
| Program Memory Type | EEPROM |
| Number of Logic Blocks/Elements | 16 |
| Number of Global Clocks | 4 |
| Number of I/O Banks | 2 |
| Number of Macro Cells | 256 |
| Product Terms | 80 |
| Data Gate | No |
| Maximum Number of User I/Os | 96 |
| In-System Programmability | Yes |
| Programmability | Yes |
| Reprogrammability Support | Yes |
| Maximum Internal Frequency (MHz) | 178.57 |
| Maximum Clock to Output Delay (ns) | 4.5 |
| Maximum Propagation Delay Time (ns) | 7.5 |
| Speed Grade | 75 |
| Individual Output Enable Control | Yes |
| Minimum Operating Supply Voltage (V) | 1.7 |
| Maximum Operating Supply Voltage (V) | 1.95 |
| Typical Operating Supply Voltage (V) | 1.8 |
| Tolerant Configuration Interface Voltage (V) | 5 |
| Maximum Operating Current (mA) | 0.341(Typ) |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 90 |
| Supplier Temperature Grade | Commercial |
| Packaging | Tray |
| Tradename | ispMACH |
| Mounting | Surface Mount |
| Package Height | 1.1(Max) |
| Package Width | 8 |
| Package Length | 8 |
| PCB changed | 132 |
| Standard Package Name | BGA |
| Supplier Package | CSBGA |
| Pin Count | 132 |
| Lead Shape | Ball |
