onsemi SiC MOSFET NTBG014N120M3P

發布時間：2026-01-04 09:09:06     瀏覽：127

　　NTBG014N120M3P 是 Onsemi 推出的第 3 代 1200 V EliteSiC 溝槽式 MOSFET，采用 D2PAK-7L 表貼封裝，典型導通電阻僅 14 mΩ，單芯片可連續通過 150 A(25 °C)或 106 A(100 °C)電流。器件針對高頻、高效場景優化，典型開通損耗 1331 μJ(74 A/800 V)，關斷損耗 620 μJ，總開關損耗約 1.95 mJ，柵極電荷 377 nC，Ciss 6313 pF，反向恢復電荷 347 nC，適合 40 kHz 以上開關頻率。

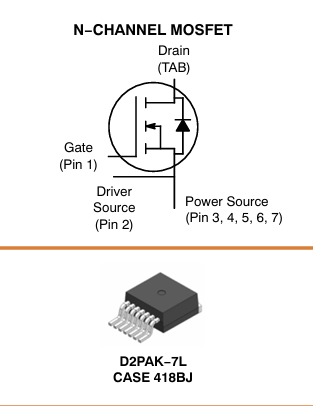

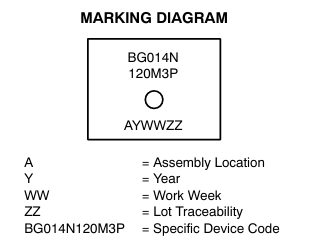

onsemi SiC MOSFETonsemi SiC MOSFET

　　關鍵優勢

　　1200 V 耐壓，20 mΩ 上限 @18 V，175 °C 下仍保持 29 mΩ

　　100 % 雪崩測試，單脈沖雪崩能量 418 mJ，可承受 452 A 脈沖電流

　　熱阻 0.23 °C/W(結-殼)，芯片工作結溫 ?55 °C~+175 °C

　　推薦柵壓 ?5/?3 V…+18 V，驅動簡單，兼容主流 SiC 驅動器

　　典型應用

　　太陽能逆變器、電動汽車直流快充、儲能變流器、UPS、服務器/電信高端 SMPS 等要求高壓、高頻、高效率的功率轉換場合。

　　相關型號參數

產品系列Blocking Voltage BVDSS (V)ID(max) (A)RDS(on) Typ @ 25°C (mΩ)Qg Total (nC)Output Capacitance (pF)Tj Max (°C)Package Type
NTBG014N120M3P1200,74,14,329,262,175,D2PAK7 (TO-263-7L HV)
NTBG015N065SC1650,145,12,283,424,175,D2PAK7 (TO-263-7L HV)
NTBG020N090SC1900,112,20,200,295,175,D2PAK7 (TO-263-7L HV)
NTBG020N120SC11200,98,20,220,258,175,D2PAK7 (TO-263-7L HV)
NTBG022N120M3S1200,72,22,151,146,175,D2PAK7 (TO-263-7L HV)
NTBG023N065M3S650,70,23,69,153,175,D2PAK7 (TO-263-7L HV)
NTBG025N065SC1650,106,19,164,278,175,D2PAK7 (TO-263-7L HV)
NTBG028N170M11700,81,28,200,200,175,D2PAK7 (TO-263-7L HV)
NTBG030N120M3S1200,77,29,107,106,175,D2PAK7 (TO-263-7L HV)
NTBG032N065M3S650,52,32,55,113,175,D2PAK7 (TO-263-7L HV)
NTBG040N120M3S1200,57,40,75,80,175,D2PAK7 (TO-263-7L HV)
NTBG040N120SC11200,60,40,106,139,175,D2PAK7 (TO-263-7L HV)
NTBG045N065SC1650,62,31,105,168,175,D2PAK7 (TO-263-7L HV)
NTBG060N065SC1650,46,44,74,133,175,D2PAK7 (TO-263-7L HV)
NTBG060N090SC1900,44,60,88,115,175,D2PAK7 (TO-263-7L HV)
NTBG070N120M3S1200,36,65,57,57,175,D2PAK7 (TO-263-7L HV)
NTBG080N120SC11200,30,80,56,79,175,D2PAK7 (TO-263-7L HV)
NTBG160N120SC11200,19.5,160,33.8,50.7,175,D2PAK7 (TO-263-7L HV)
NTBL023N065M3S650,77,23,69,152,175,H-PSOF8L 9.90x10.38x2.30, 1.20P
NTBL032N065M3S650,55,32,55,113,175,H-PSOF8L 9.90x10.38x2.30, 1.20P
NTBL045N065SC1650,73,33,105,162,175,H-PSOF8L 9.90x10.38x2.30, 1.20P
NTBL060N065SC1650,46,44,74,133,175,H-PSOF8L 9.90x10.38x2.30, 1.20P
NTBL075N065SC1650,37,57,59,109,175,H-PSOF8L 9.90x10.38x2.30, 1.20P
NTC040N120SC11200,40,40,90.5,140,175,-
NTCR013N120M3S1200,151,13,254,262,175,-
NTH4L013N120M3S1200,151,13,254,262,175,TO-247-4
NTH4L014N120M3P1200,127,14,262,329,175,TO-247-4
NTH4L015N065SC1650,142,12,283,430,175,TO-247-4
NTH4L018N075SC1750,140,13.5,262,365,175,TO-247-4
NTH4L020N090SC1900,148,20,232,280,175,TO-247-4
NTH4L020N120SC11200,102,20,220,258,175,TO-247-4
NTH4L022N120M3S1200,89,22,137,146,175,TO-247-4
NTH4L023N065M3S650,67,23,69,153,175,TO-247-4
NTH4L025N065SC1650,99,19,164,278,175,TO-247-4
NTH4L028N170M11700,81,28,200,200,175,TO-247-4
NTH4L030N120M3S1200,73,29,107,106,175,TO-247-4
NTH4L032N065M3S650,50,32,55,114,175,TO-247-4
NTH4L040N120M3S1200,54,40,75,80,175,TO-247-4
NTH4L040N120SC11200,58,40,106,137,175,TO-247-4
NTH4L045N065SC1650,55,33,105,162,175,TO-247-4
NTH4L060N065SC1650,47,44,74,133,175,TO-247-4
NTH4L060N090SC1900,67,60,61.8,107,175,TO-247-4
NTH4L070N120M3S1200,36,65,57,57,175,TO-247-4
NTH4L075N065SC1650,38,57,61,107,175,TO-247-4
NTH4L080N120SC11200,29,80,56,80,175,TO-247-4
NTH4L095N065SC1650,31,70,50,89,175,TO-247-4
NTH4L160N120SC11200,17.3,160,34,49.5,175,TO-247-4
NTHL015N065SC1650,163,12,283,430,175,TO-247-3LD
NTHL020N090SC1900,118,20,196,296,175,TO-247-3LD
NTHL020N120SC11200,103,20,203,260,175,TO-247-3LD
NTHL022N120M3S1200,89,22,137,146,175,TO-247-3LD
NTHL023N065M3S650,70,23,69,153,175,TO-247-3LD
NTHL025N065SC1650,99,19,164,278,175,TO-247-3LD
NTHL030N120M3S1200,73,29,107,106,175,TO-247-3LD
NTHL032N065M3S650,51,32,55,114,175,TO-247-3LD
NTHL040N120M3S1200,54,40,75,80,175,TO-247-3LD
NTHL040N120SC11200,60,40,106,140,175,TO-247-3LD
NTHL045N065SC1650,66,32,105,162,175,TO-247-3LD
NTHL060N065SC1650,47,44,74,133,175,TO-247-3LD
NTHL060N090SC1900,46,60,87,113,175,TO-247-3LD
NTHL070N120M3S1200,34,65,57,57,175,TO-247-3LD
NTHL075N065SC1650,38,57,61,107,175,TO-247-3LD
NTHL080N120SC1A1200,31,80,56,80,175,TO-247-3LD
NTHL160N120SC11200,26,160,24,40,175,TO-247-3LD
NTMT045N065SC1650,55,33,105,162,175,TDFN4 8.00x8.00x1.00, 2.00P
NTT2023N065M3S650,72,23,74,152,175,T2PAK-7 11.80x14.00x3.50, 1.27P
NVBG015N065SC1650,145,12,283,424,175,D2PAK7 (TO-263-7L HV)
NVBG020N090SC1900,112,20,200,295,175,D2PAK7 (TO-263-7L HV)
NVBG020N120SC11200,98,20,220,258,175,D2PAK7 (TO-263-7L HV)
NVBG022N120M3S1200,100,22,148,148,175,D2PAK7 (TO-263-7L HV)
NVBG023N065M3S650,40,23,69,152,175,D2PAK7 (TO-263-7L HV)
NVBG025N065SC1650,106,19,164,278,175,D2PAK7 (TO-263-7L HV)
NVBG030N120M3S1200,77,29,107,106,175,D2PAK7 (TO-263-7L HV)
NVBG032N065M3S650,23,32,55,113,175,D2PAK7 (TO-263-7L HV)
NVBG040N120M3S1200,57,40,75,80,175,D2PAK7 (TO-263-7L HV)
NVBG040N120SC11200,60,40,106,139,175,D2PAK7 (TO-263-7L HV)
NVBG045N065SC1650,62,31,105,168,175,D2PAK7 (TO-263-7L HV)
NVBG060N065SC1650,46,44,72,129,175,D2PAK7 (TO-263-7L HV)
NVBG060N090SC1900,44,60,88,115,175,D2PAK7 (TO-263-7L HV)
NVBG070N120M3S1200,36,65,57,57,175,D2PAK7 (TO-263-7L HV)
NVBG075N065SC1650,37,56,59,109,175,D2PAK7 (TO-263-7L HV)
NVBG080N120SC11200,30,80,56,79,175,D2PAK7 (TO-263-7L HV)
NVBG095N065SC1650,30,70,50,89,175,D2PAK7 (TO-263-7L HV)
NVBG160N120SC11200,19.5,160,33.8,50.7,175,D2PAK7 (TO-263-7L HV)
NVH4L015N065SC1650,142,12,283,424,175,TO-247-4
NVH4L018N075SC1750,140,13.5,262,365,175,TO-247-4
NVH4L020N090SC1900,148,20,232,280,175,TO-247-4
NVH4L020N120SC11200,102,20,220,258,175,TO-247-4
NVH4L022N120M3S1200,89,22,148,148,175,TO-247-4
NVH4L023N065M3S650,40,23,69,153,175,TO-247-4
NVH4L025N065SC1650,96,21,156,256,175,TO-247-4
NVH4L030N120M3S1200,73,29,107,106,175,TO-247-4
NVH4L032N065M3S650,23,32,55,114,175,TO-247-4
NVH4L040N120M3S1200,54,40,75,80,175,TO-247-4
NVH4L040N120SC11200,58,40,106,137,175,TO-247-4
NVH4L045N065SC1650,55,33,105,162,175,TO-247-4
NVH4L060N065SC1650,47,44,74,133,175,TO-247-4
NVH4L060N090SC1900,46,60,87,113,175,TO-247-4
NVH4L070N120M3S1200,34,65,57,57,175,TO-247-4
NVH4L075N065SC1650,38,57,61,107,175,TO-247-4
NVH4L080N120SC11200,29,80,56,80,175,TO-247-4
NVH4L095N065SC1650,31,95,50,89,175,TO-247-4
NVH4L160N120SC11200,17.3,160,34,49.5,175,TO-247-4
NVHL015N065SC1650,163,12,283,430,175,TO-247-3LD
NVHL020N090SC1900,118,20,196,296,175,TO-247-3LD
NVHL020N120SC11200,103,20,203,260,175,TO-247-3LD
NVHL023N065M3S650,40,23,69,153,175,TO-247-3LD
NVHL025N065SC1650,99,19,164,278,175,TO-247-3LD
NVHL040N120SC11200,60,40,106,140,175,TO-247-3LD
NVHL045N065SC1650,66,32,105,162,175,TO-247-3LD
NVHL060N065SC1650,47,44,74,133,175,TO-247-3LD
NVHL060N090SC1900,46,60,87,113,175,TO-247-3LD
NVHL070N120M3S1200,34,65,57,57,175,TO-247-3LD
NVHL075N065SC1650,38,57,61,107,175,TO-247-3LD
NVHL080N120SC11200,44,80,56,80,175,TO-247-3LD
NVHL080N120SC1A1200,31,80,56,80,175,TO-247-3LD
NVHL1000N170M11700,4.2,960,14,11,175,TO-247-3LD
NVHL160N120SC11200,26,160,24,40,175,TO-247-3LD
NVT2023N065M3S650,67,24,74,152,175,T2PAK-7 11.80x14.00x3.50, 1.27P

深圳市立維創展科技有限公司優勢提供Onsemi的MOSFETs、AC-DC/DC-DC電源轉換器模塊及碳化硅(SiC)產品，歡迎咨詢了解。
